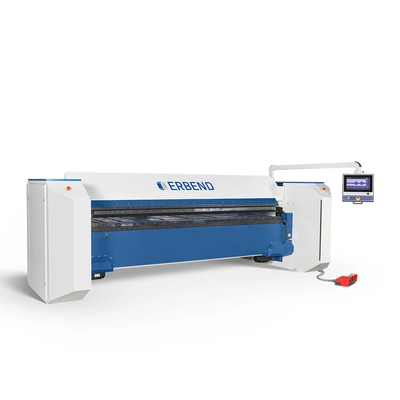

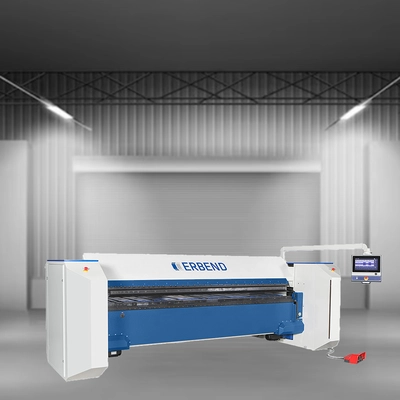

ERBEND MFE CNC Sheet Metal Folder

Description

STANDARD FEATURES:

• Clamping beam with 180 mm opening height and dual servo driven ballscrew spindle system.

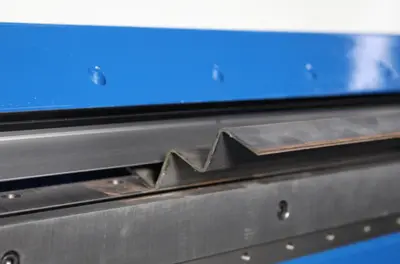

• 30° single piece sharpnose tool.

• 15 and 40 mm wide folding beam tools, single piece as 2 sets

• Bottom beam tool with channels and two sets of single piece folding tools.

• 2 sets of single piece folding tools as 15 and 40 mm wide.

• Manual folding beam adjustment.

• ERFOLD BASIC CNC LBL control software on 15.6 ” touchscreen controller with swivel arm.

• Front light barriers.

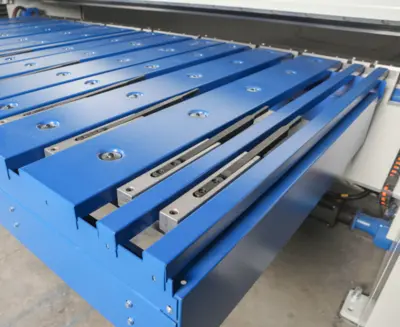

• 1000 mm servo backgauge system with rectangular sheet support table and solid fingers.

OPTIONAL FEATURES:

• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options

• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.

• Servo folding beam adjustment.

• Manual crowning system.

• Pneumatic quick goatfoot tool clamping.

• Segmented bottom or folding tools.

• 100 mm high segmented goat foot tool set.
