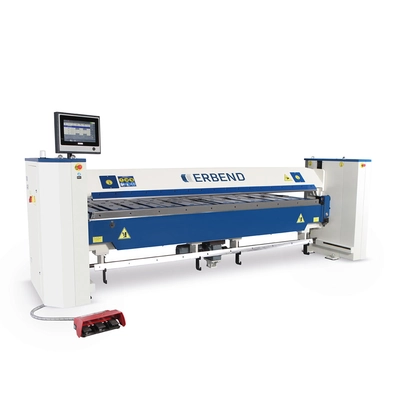

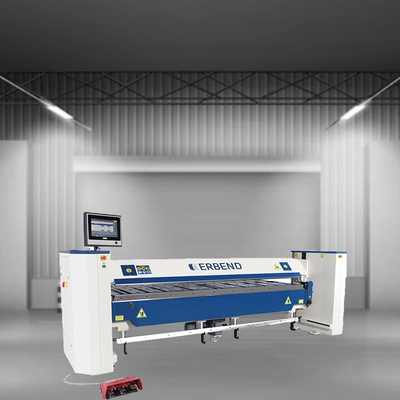

ERBEND MFC CNC Sheet Metal Folder

Description

STANDARD FEATURES

• 180 mm opening height capacity on the upper beam.

• Eccentric upper beam power transmission system for rapid clamping/unclamping.

• 10 and 25 mm wide single piece folding tools as 2 sets.

• ERFOLD BASIC CNC LBL Cnc control software on 15.6 ” touchscreen controller with swivel arm.

• 750 mm servo backgauge system with feather grooves.

• 0-150° folding angle.

• Manual folding beam adjustment.

• Front light barriers.

• Solid lower beam tool without channels.

OPTIONAL FEATURES:

• 1000 or 1500 mm servo backgauge system with rectangular sheet support table.

• 60 or 90 mm high segmented goat foot tool set.

• Manual crowning system.

• Servo folding beam adjustment.

• ERFOLD ADVANCED 2D/3D Cnc Graphic Control Software.

• Omega geometry upgrade on lower and folding beam.

• Manual conical backgauge finger.

• Motorized conical backgauge system.

• Pneumatic goat foot tool quick clamping system.
