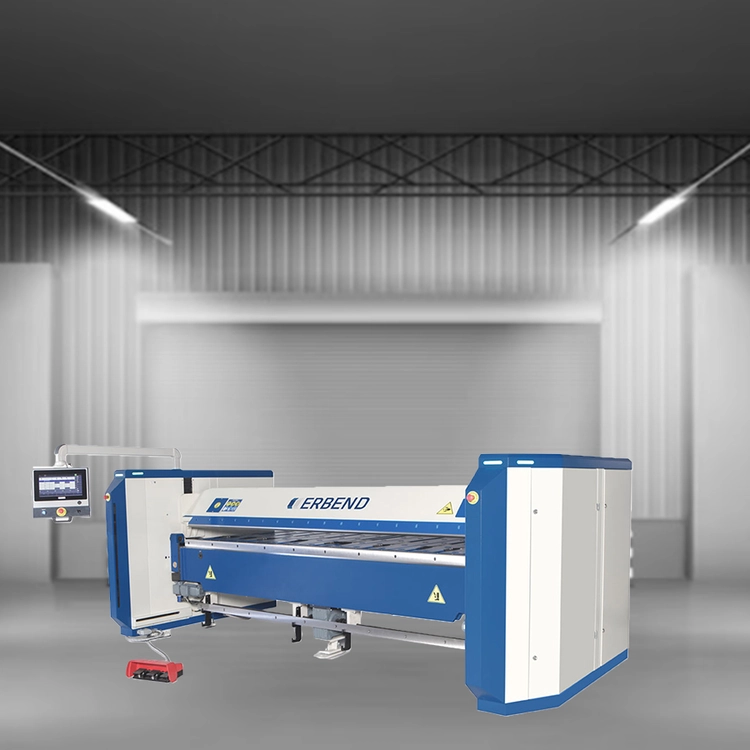

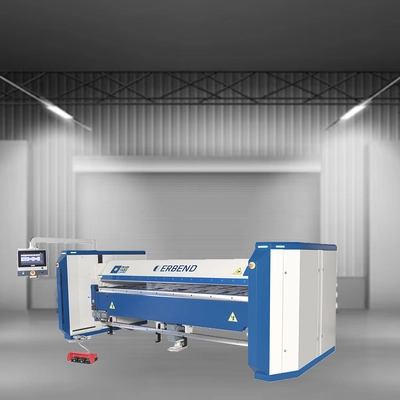

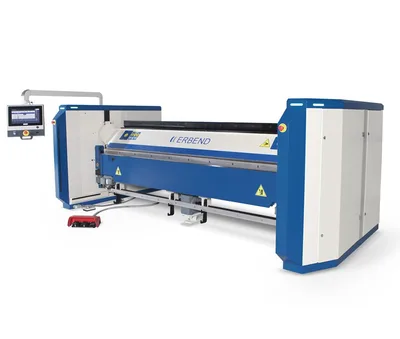

ERBEND MFB CNC Sheet Metal Folder

Description

STANDARD FEATURES

• 220 mm opening height capacity on the upper beam.

• Eccentric upper beam power transmission system for rapid clamping/unclamping.

• 1000 mm servo backgauge system with feather grooves.

• Manual folding beam adjustment.

• 10 and 25 mm wide single piece folding tools as 2 sets.

• Solid lower beam tool without channels.

• ERFOLD BASIC CNC LBL Cnc control software on 15.6 ” touchscreen controller with swivel arm.

• Front light barriers.

OPTIONAL FEATURES

• 1500 mm servo backgauge system with rectangular sheet support table.

• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.

ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.

• Servo folding beam adjustment.

• Manual crowning system.

• 90 or 110 mm high segmented goat foot tool set.

• Omega geometry upgrade on lower and folding beam.

• Manual conical backgauge finger.

• Motorized conical backgauge system.

• Pneumatic goat foot tool quick clamping system.

• Segmented bottom or folding tools.
