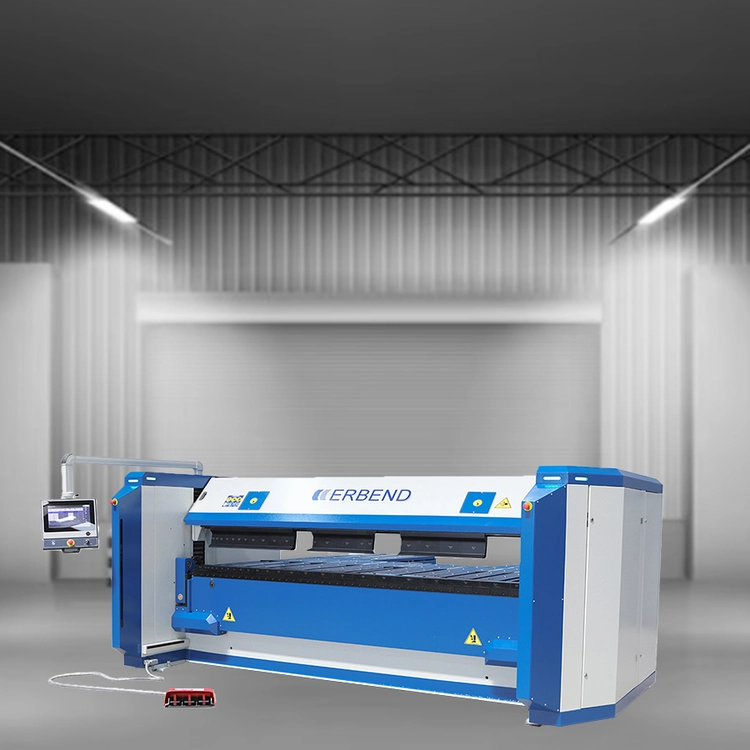

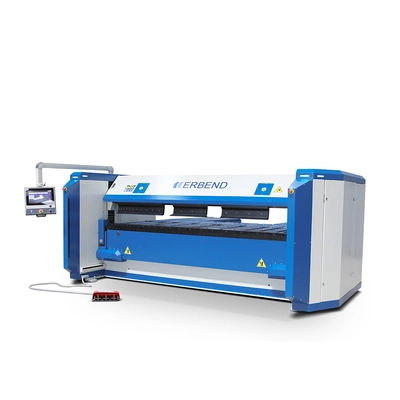

ERBEND SFA CNC Sheet Metal Folder

Description

STANDARD FEATURES

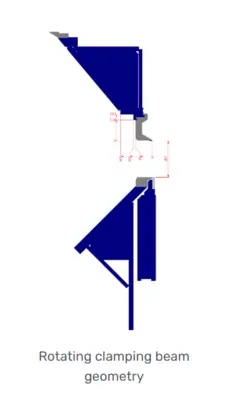

• Clamping beam with 350 mm opening height and 170 mm high, segmented goat foot tools.

• Dual drive clamping beam with ball screw spindle system for more clamping power.

• 1500 mm servo backgauge system with rectangular sheet support table and solid fingers.

• 170 mm high segmented goat foot tools.

• ERFOLD BASIC CNC LBL control software on 15.6 ” touchscreen controller with swivel arm.

• 15 and 40 mm wide folding beam tools, single piece as 2 sets.

• Front light barriers.

• Manual folding beam adjustment.

OPTIONAL FEATURES:

• 400 mm clamping beam opening and 200 mm high tools upgrade.

• 2500 / 3200 / 4200 mm servo backgauge system upgrade with L / T / U shape sheet support table options.

• ERFOLD ADVANCED 2D/3D CNC Graphic Control Software.

• Motorized folding beam adjustment.

• Pneumatic goat foot quick clamping.

• Manual crowning system.

• Feather grooves with solid lower beam tool without channels.

• Segmented bottom or folding beam tools.
