JORG Cut-to-Length Line for Coil Sheet Metal (Custom)
Have one to sell?
ConditionNew
New

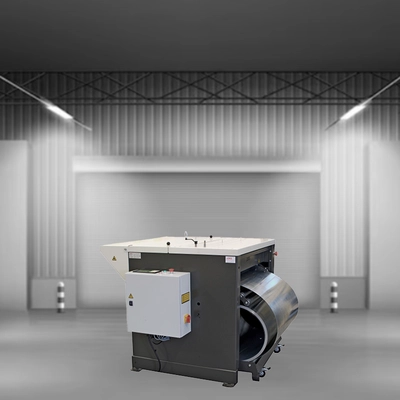

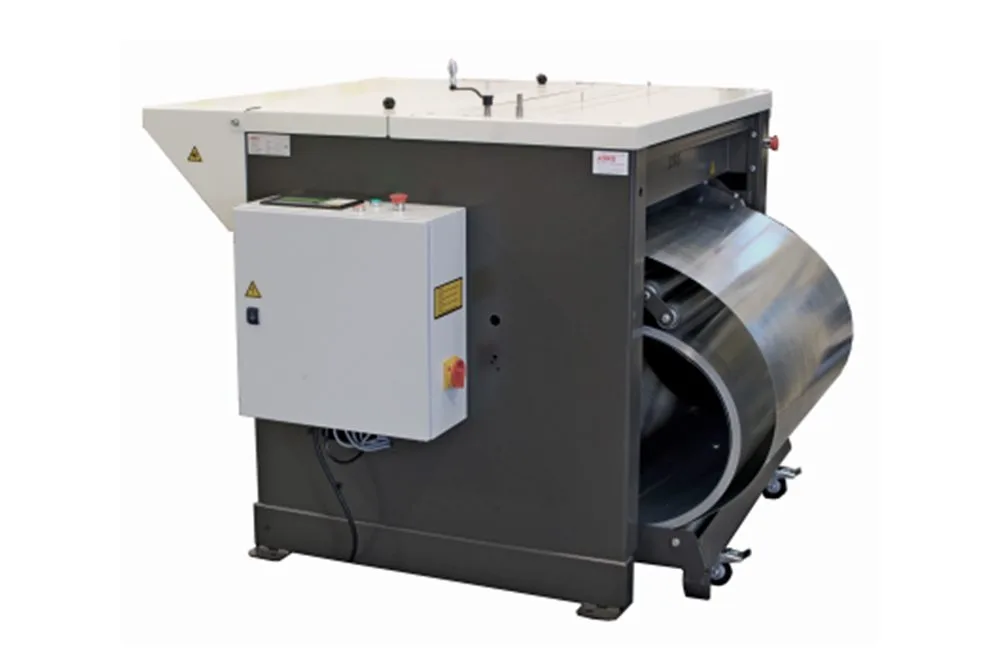

The JORG Cut-to-Length Line is a compact and efficient coil processing system designed to deliver straightened, clean-cut sheet from coil stock. Ideal for HVAC and custom fabrication shops, this line integrates an uncoiler, straightener, precision feeder, and shear for automated, programmable output.
Key Features:
• Compatible with galvanized steel, aluminum, and pre-painted coils
• Compact design
• Adjustable slitting
• Optional film applicator
• Auto uncoiler, straightener, and feeder integration
• Programmable touchscreen interface
• Adjustable line speed and length settings
• Clean shearing
Applications:
• HVAC duct production
• Roofing and siding panel shops
• Light gauge metal forming
Capacity.................. 1.5mm(th) x 1270mm(w)
Plate processing speed.... 12 m/min
Weight.................... 490 kg
Dimensions................ 1780 x 1755 mm
Power supply.............. 3 x 400 V, 1,5 kW

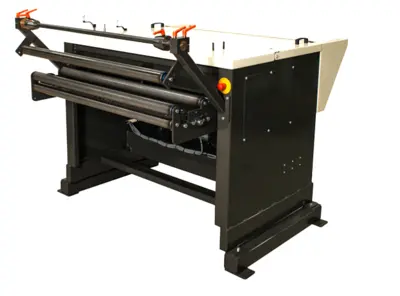

Straightening unit with 4 rolls and 2 vulcanised feeding rolls, gear driven
PLC-control: easily programmable with 4 program lines for length and quantity
Stable mechanical guillotine shear
Length measuring with wheel and encoder
Coil carrier on castor wheels, with tilting functionDecoiler, straightener, and shearing stations

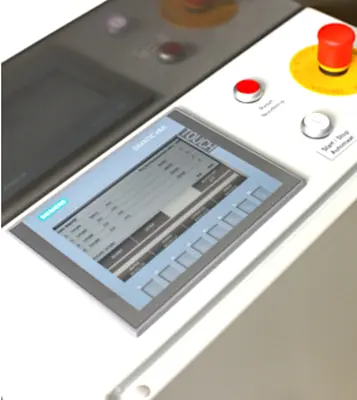

Touchscreen controls with job memory
Available in multiple widths and gauges
Heavy-duty construction with servo-powered accuracy
