Overview

Type:
Tube Profile Laser
Manufacturer:
JQ LASER
Model:
3D
Condition:
Build To Order
Status:
For Sale

Description

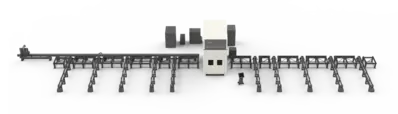

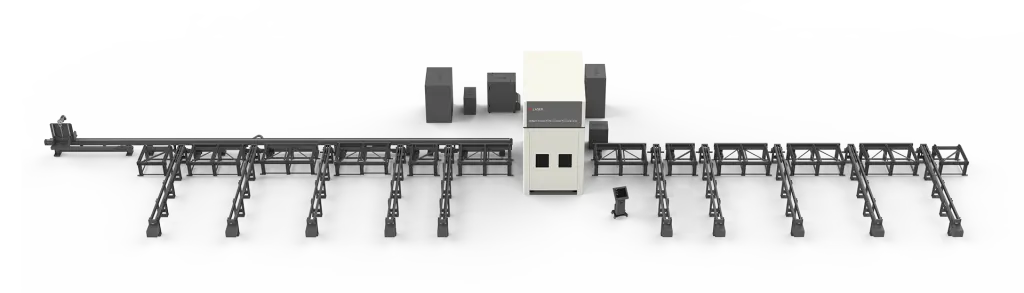

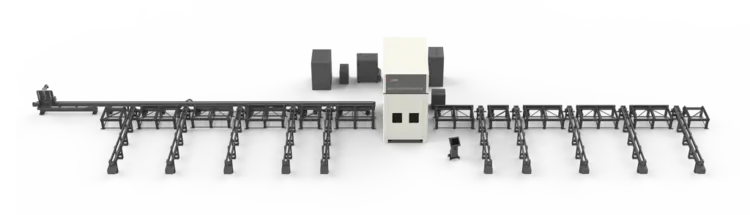

Advanced 3D CNC Profile Laser Cutter

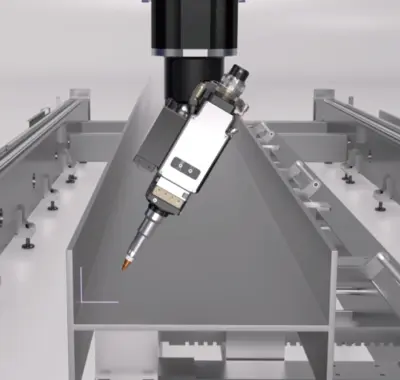

Shape cutting head: 4 series + BC axis + deep finder product portfolio developed for 6~30KW profile cutting applications, air pressure monitoring, lens temperature monitoring, collision prevention and other intelligent technologies are applied. It can meet the processing needs of beam bevel processing, welding notch cutting, bolt hole, etc., and the cutting is stable and the performance is excellent.

KEY FEATURES:
• Precision 3D cutting for structural applications
• Bevel and angle cuts for welding prep
• Ideal for advanced fabrication and automation
• Applications: Automotive, aerospace, architecture, steel construction

Laser Power Kw20KW20KW
Max Tube Diameter1000mm x 500mm profiles1000mm x 500mm profiles
Tube Length20m (65ft)20m (65ft)
Chuck TypeN/AN/A
Number of ChucksN/AN/A
ProfilesAll common and complex structural shapesAll common and complex structural shapes
Positioning Accuracy0.05mm (0.002")0.05mm (0.002")
Repeatability0.05mm (0.002")0.05mm (0.002")

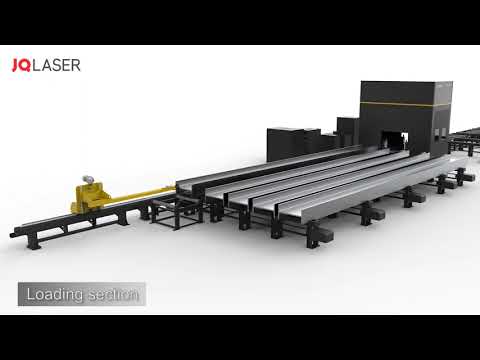

Automatic Loading/Unloading SystemYESYES
5 Axis Cutting HeadYESYES
Laser Source TypeMax photonicsMax photonics
Safety Enclosure & InterlocksYesYes
CAD/CAM Software CompatibilitySTEP, IGES, DXF, TEKLA, etc...STEP, IGES, DXF, TEKLA, etc...
Weight20,000kg20,000kg

3D scanning
Intelligent recognition
Nesting software
