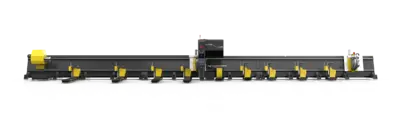

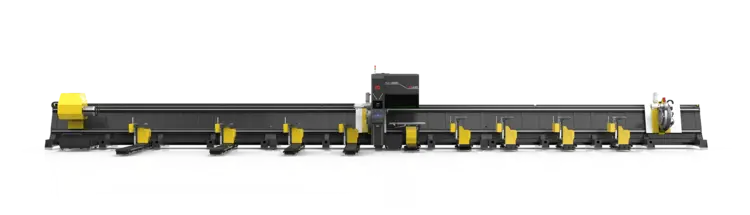

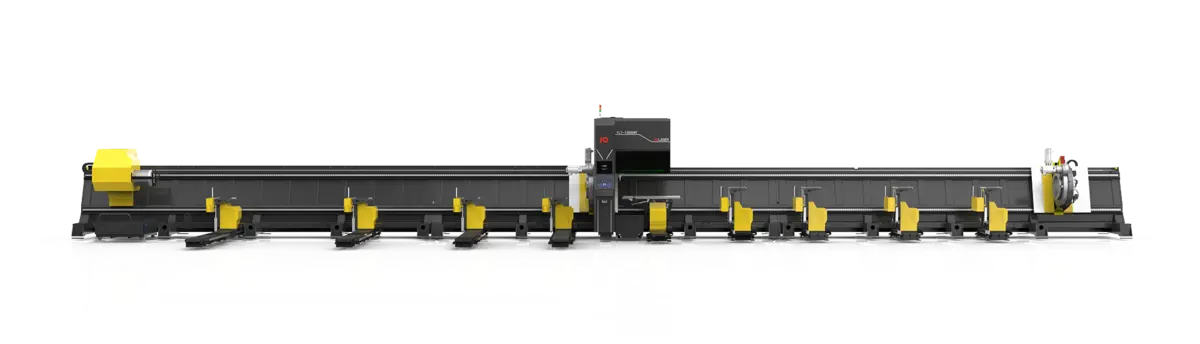

JQ Laser 4-Chuck Tube Laser

Have one to sell?
519-220-1429
sales@ferricmachinery.com
ConditionNew
Have one to sell?

Overview

Type:
Tube Profile Laser
Manufacturer:
JQ LASER
Model:
4-CHUCK
Condition:
Build To Order
Status:
For Sale

Description

High-Speed Long-Length CNC Tube Laser with features including:

• Applications: Structural steel, shipbuilding, large-scale manufacturing
• High-speed, high-capacity cutting
• Extreme accuracy for long/heavy tubes
• No repositioning required
• Supports fully automated workflow

Laser Power Kw6 - 20Kw6 - 20Kw
Max Tube Diameter650mm (25")650mm (25")
Tube Length6.5m - 15m (20ft - 50ft)6.5m - 15m (20ft - 50ft)
Chuck TypeSquare or circleSquare or circle
Number of Chucks44
ProfilesRound, square, rectangular, elliptical, C-channel, I-beam, etc.Round, square, rectangular, elliptical, C-channel, I-beam, etc.
Positioning Accuracy0.05mm (0.002")0.05mm (0.002")
Repeatability0.05mm (0.002")0.05mm (0.002")
Automatic Loading/Unloading SystemAvailableAvailable
5 Axis Cutting HeadAvailableAvailable
Laser Source TypeRaycus/IPG/ max photonics/ JQRaycus/IPG/ max photonics/ JQ
Safety Enclosure & InterlocksYesYes
CAD/CAM Software CompatibilityStep, IGES, DXF, Tekla etc...Step, IGES, DXF, Tekla etc...

Dual-drive servo motor system
Full-length stability
