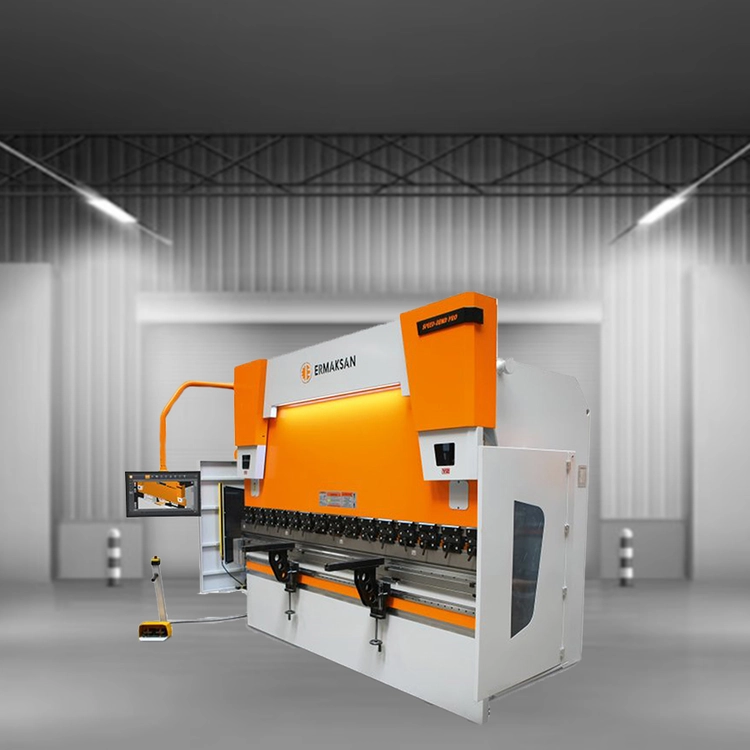

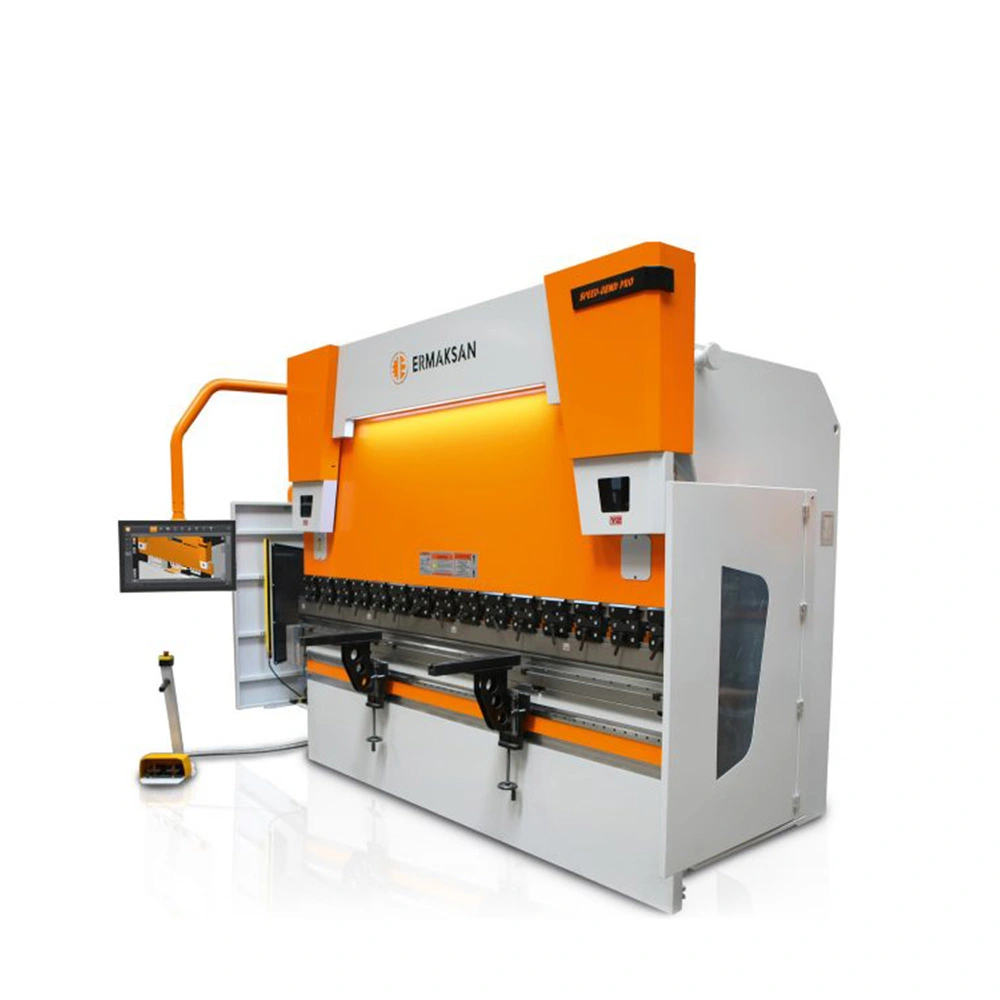

The Speed-Bend series is built for high-speed bending operations with short cycle times and enhanced productivity. Designed for large-scale fabrication environments, it offers powerful, efficient CNC control and unmatched repeatability.
Top Features:
• Rapid Y-axis movement
• High-pressure hydraulic system
• CNC-controlled backgauge
• Optional servo-driven automation
Applications:
• Industrial steel manufacturing
• Automotive & trailer components
• 24/7 production facilities
High free-fall, bending and return speeds
The most powerful control software and hardware
CNC – 2D – Full 3D programming including off-line software with dxf-dwg import
Motorized CNC controlled crowning system
4 axes (X-R-Z1-Z2) back gauge with servo motors
Several tool clamp options
Durable choice for your precise bending jobs
Sheet following system available as option
Bending Force 40 to 600 Tons
Bending Length 1270 mm - 6100 mm single machine or tandem
Standard Back Gauge 4 axes upgrade option to 6 axes independent
Crowning CNC Motorized
Tool Clamp Wila hydraulic – European – North American
Controller 17” – CNC – 2D – Full 3D with off-line programming software
