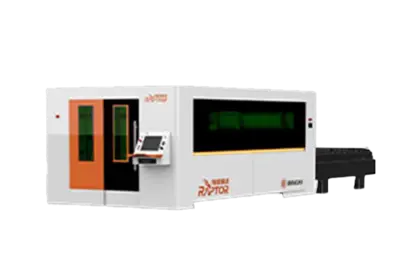

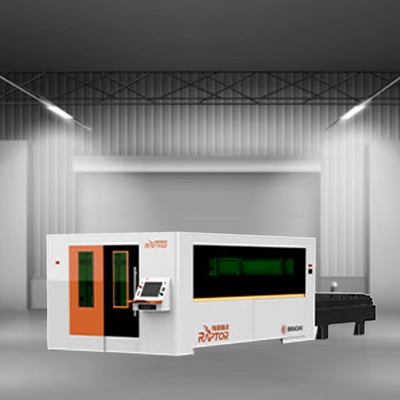

ERMAKSAN Thunderbird Laser Cutting Machine

Specifications Thunderbird 3×1.5

Working Area (mm) ......................... 3000×1500

Maximum Load Capacity (kg) ................ 1500

Axial Movements:

X, U Axes / Servo Motor Table (mm) ........ 3050

Y Axis / Servo Motor Bridge (mm) .......... 1550

Z axis / servo motor cutting head (mm)..... 300

Acceleration (G) .......................... 1

Servo Motor Maximum Axis Speeds (m/min) ... 106 (resulant speed) (X, Y single axis speed 75m/min)

Automatic loading/unloading unit (Pallet) .. 2 (35 sn)

Machine Dimensions (LxWxH)(mm) ............. 9250x4500x2200

Machine Weight (kg) ........................ 8500

Machine Axes ............................... 4-Axis (X,Y,Z,U)

Positioning Accuracy ....................... ± 0.055

Repetition Accuracy ........................ ± 0.032

CNC ........................................ Beckhoff

CAD/CAM Software ........................... Metalix, Lantek

Network Connection ......................... Ethernet

Control Panel 15-inch screen 1024×768, alphanumeric keyboard, PLC keys, touchscreen keyboard
