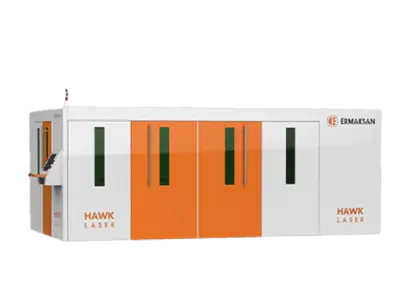

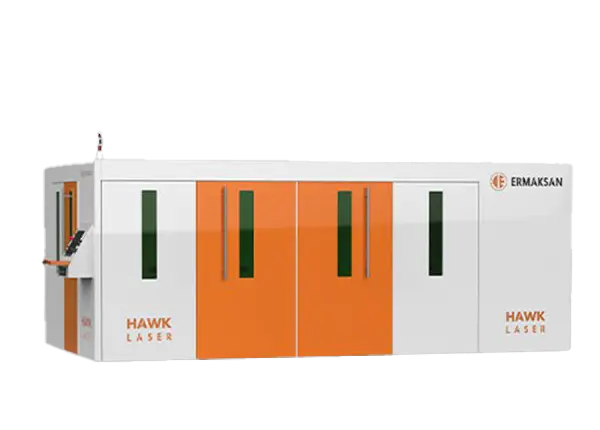

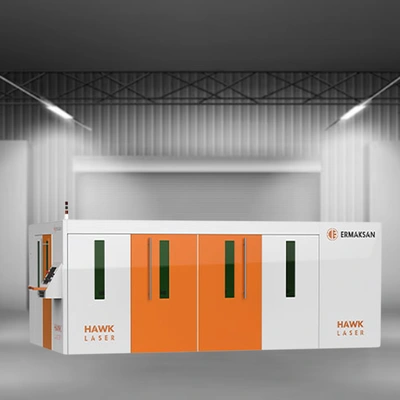

ERMAKSAN HAWK Laser Cutting Machine

Specifications Hawk 2.5×1.25 Hawk 3×1.5

Working Area (mm) 2500×1250 3000×1500

Maximum Load Capacity (kg) 500 700

Axial Movements

X, U Axes / Servo Motor Table (mm) 2250 3050

Y Axis / Servo Motor Bridge (mm) 1270 1530

Z axis / servo motor cutting head (mm) 110 110

Acceleration (G) 1 1

Servo Motor Maximum Axis Speeds (m/min) 106 (resulant speed) (X, Y single axis speed 75m/min) 106 (resulant speed) (X, Y single axis speed 75m/min)

Automatic loading/unloading unit (Pallet)

Machine Dimensions (LxWxH)(mm) 8865x2400x1800 9365x3748x2200

Machine Weight (kg) 5000 5500

Machine Axes 4-Axis (X,Y,Z,U) 4-Axis (X,Y,Z,U)

Positioning Accuracy ± 0.1 ± 0.1

Repetition Accuracy ± 0.5 ± 0.5

CNC Beckhoff 2215 Beckhoff 2215

CAD/CAM Software Metalix, Lantek Metalix, Lantek

Network Connection Ethernet Ethernet

Control Panel 15-inch screen 1024×768, alphanumeric keyboard, PLC keys, touchscreen keyboard 15-inch screen 1024×768, alphanumeric keyboard, PLC keys, touchscreen keyboard
