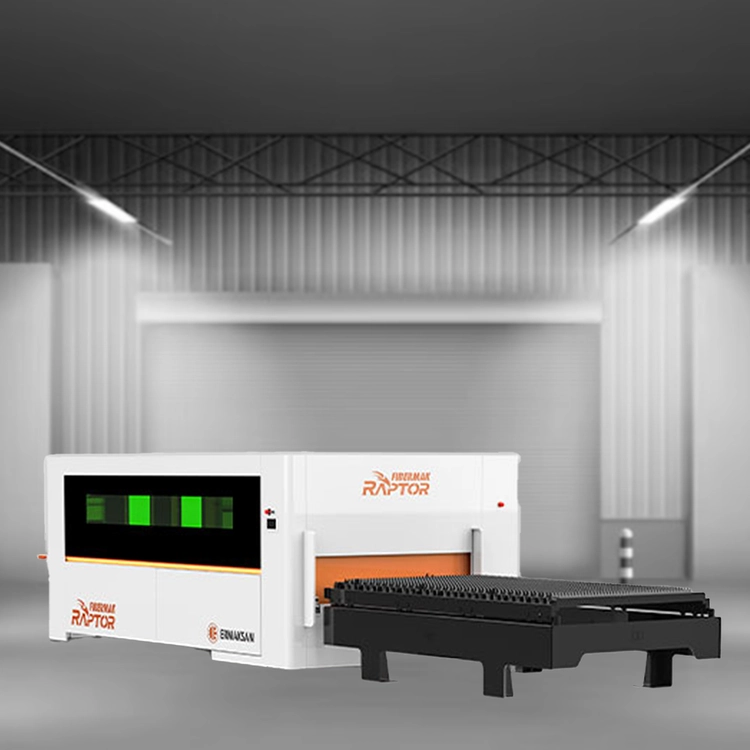

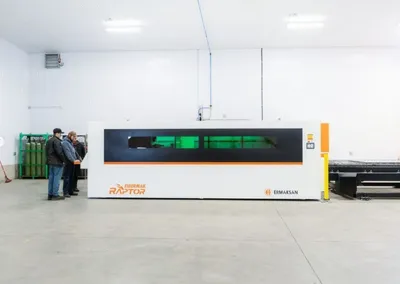

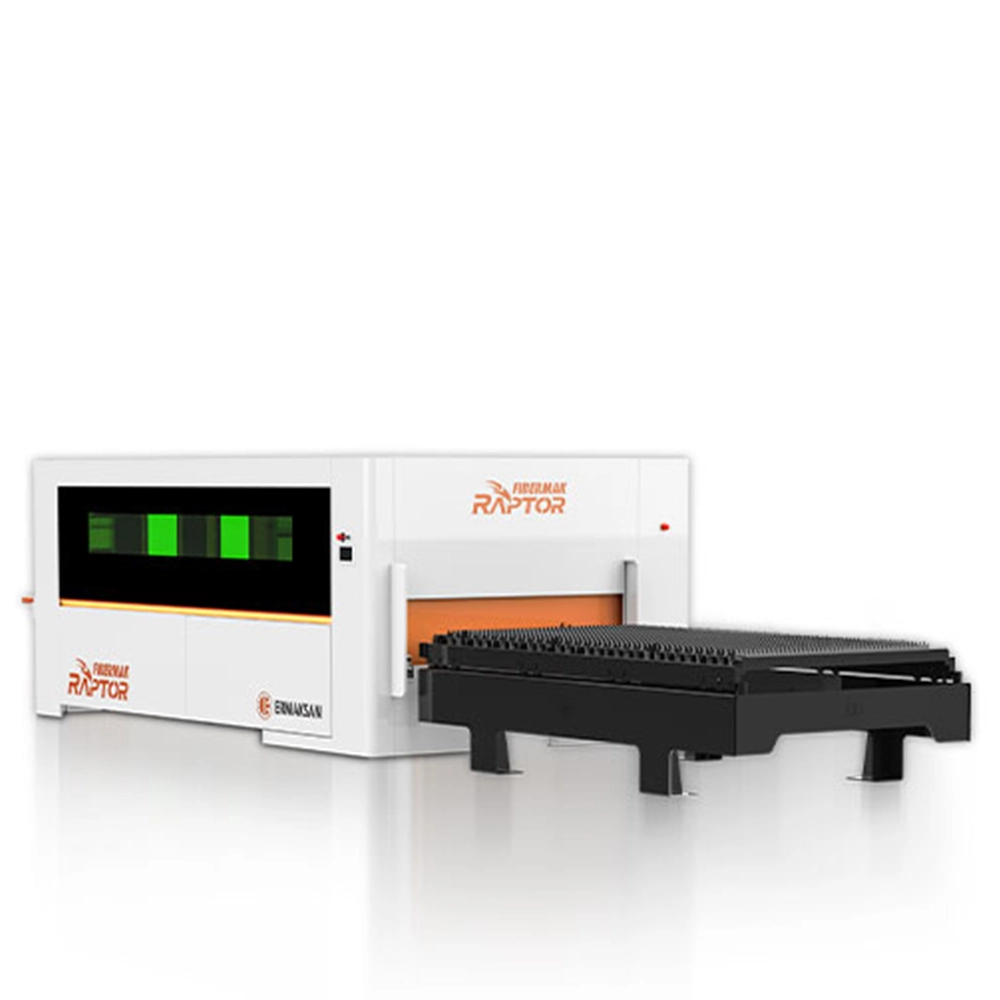

The Raptor fiber laser center was designed for the needs of the small to medium size companies keeping in mind to offer a well built, reliable machine, capable of handling all required laser cutting in house, with an affordable investment and fulfilling all the needs for a reliable machine.
One piece welded cutting table with ultra-light dual X axes driven gantry. Cutting table has zoned suction chambers optimizing the dust and smoke collection and minimizing the size of the dust collector. A motorized conveyor moves
the scrap and small parts to the collector bin, located at the front of the machine.
Complete enclosed ergonomic machine cover with good visual access to the cutting area. As safety is a priority, the standard machine comes with perimeter light beam protection around the dual pallet changer.
Laser Source: IPG 1 / 2 / 3 / 4 kW
Table Dimensions: 5 x 10 ft
Material Types: Mild Steel, Stainless Steel, Aluminum, Copper, Brass
Table: 5 x 10 ft
Dual automatic hydraulic pallet changer
Beckhoff controller
Automatic scrap conveyor
Lantek Expert CAD/CAM auto nesting software
Precitec ProCutter Autofocus cutting head
IPG resonator and Procutter cutting head
IPG chiller
Dust Collector
