JÖRG Compact Light Gauge Coil Laser 2012

Description

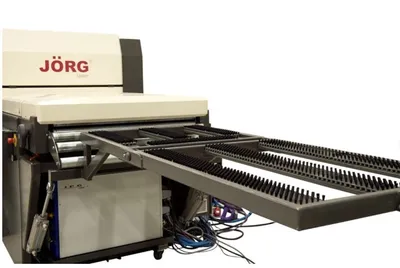

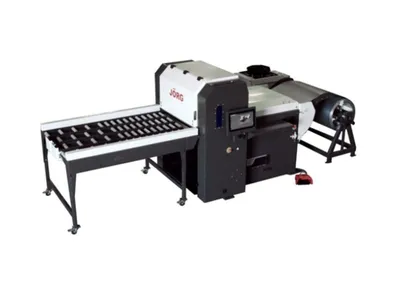

The Jorg 2012 Coil-fed Laser Cutting Machine is designed to increase production, reduce space and time of changing sheets, and allow continuous unsupervised cutting. This machine has a max capacity of 14g and width of 1270mm (50in)

Customer specific configuration possible.

APPLICATIONS:

Insulation cladding, ir duct fittings, thin sheet: steel, a stainless steel, aluminum, copper, zinc, etc. Suitable for serial production, high volume production, production of complex nested parts and can be used as a replacement for punch lines.

CUTTING FROM COIL:

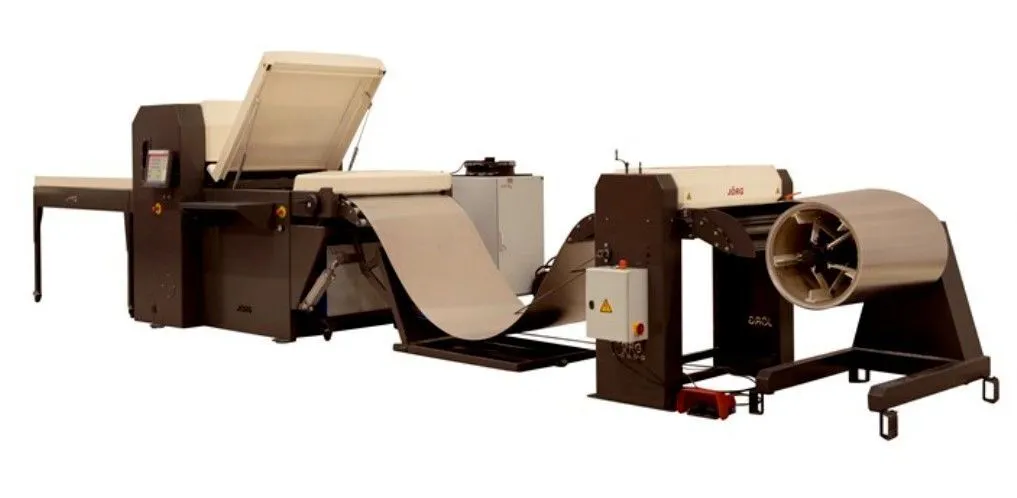

The JÖRG-Laser cuts directly from the coil. This increases the material used efficiency, and the sheet supply to be efficient. In addition, the length of the products to be cut is not limited by the machine. By setting up multiple decoilers for the machine, with an automatic selector, it is possible to quickly switch materials.

AUTODESK CAMDUCT OR EUROSOFT HVAC SOFTWARE

Optional software for efficient management of the production of air ducts, insulation cladding, and similar products: developing, nesting, and programming. With e database of standardised products.
