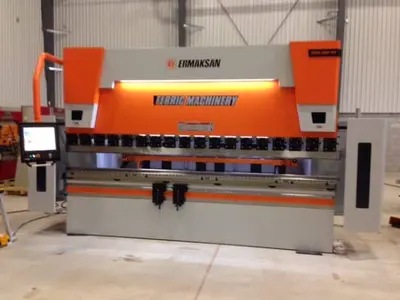

Ermaksan Speed Bend Pro 3760×220 – 12ft x 242 Ton CNC Press Brake
Have one to sell?
ConditionUsed
1 available
The Ermaksan Speed Bend Pro 3760×220 is engineered for high-precision, high-speed metal bending applications. With a robust 242-ton capacity and a 12-foot bending length, this CNC press brake is equipped with advanced features to meet the demands of modern fabrication shops.
• Top tool clamping for N.A. & European Tooling with quick release
• Quick release style tool clamps
• Goose neck top tool in sections, grounded and flame hardened
• Riser bloc for single V dies
• 4 axes back gauge : X-R-Z1-Z2
• CNC controlled motorized crowning table
• Two sliding front support arms with rulers and flip stop movable over full working length on guides and bearings with lock and height adj.
• Back & side guarding with interlock to the machine control
• Laser safe type light guard with interlock to the machine control
• 575V/3ph/60Hz
Capacity : ...................... 220 Metric Ton – 242 US Short Tons
Overall Bending length : ........ 148”
Between Side Frames : ........... 128”
Gap in the side Frames : ........ 16.1”
Daylight opening under clamps: .. (21.5-4.5):17”, Stroke: 10.8”
Cambridge, ON
The easy to ER90 Plus 2D-3D programming touch screen, graphic control, including off line programming software.
